EV Fuse: Technical Guide for Electric Vehicle Protection (2026)

• Alt: high voltage EV DC fuse with bolt terminals for battery pack protection
• File Name: ev-dc-fuse-bolt-terminal.jpg

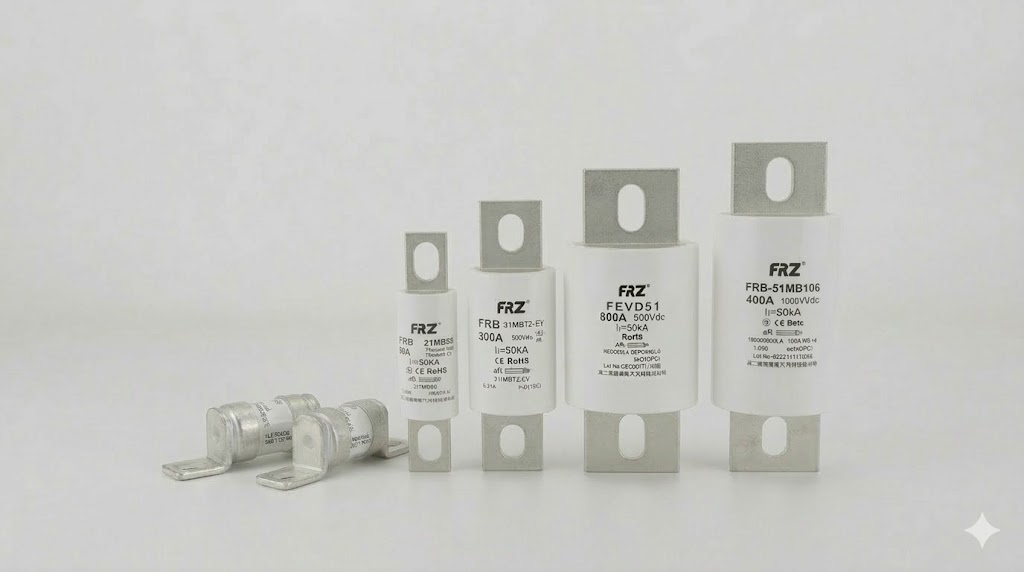

Caption: High-voltage EV fuse used in electric vehicle battery systems

An EV fuse is a DC protection device specifically designed for electric vehicle systems, where high voltage, fast-changing loads, and compact installation conditions require precise and reliable fault interruption.

In modern EV platforms, fuses are mainly used to protect:

• Battery packs (lithium-ion systems)
• Traction inverter input
• DC busbars
• Onboard charging and DC-DC systems

Unlike general DC fuses, EV fuses are optimized for dynamic electrical behavior and fast protection of power electronics.

Modern electric vehicles are built around high-voltage DC systems, typically:

• 400V platforms (mainstream EVs)
• 800V platforms (high-performance EVs)

These systems supply power to traction inverters and motors with rapidly changing load conditions.

Key protection challenges include:

• Fast-rising short-circuit currents
• High switching frequency in inverters
• Limited space for protection devices
• Thermal stress inside battery packs

This makes fuse selection in EVs more sensitive compared to stationary systems.

EV fuses are placed at critical protection points:

1. Battery pack main fuse – protects entire battery system
2. Battery module / sub-pack protection
3. DC bus between battery and inverter
4. Inverter input protection (IGBT/MOSFET protection)
5. Onboard charger and DC-DC converter circuits

Each location requires different fuse characteristics, especially in terms of response speed and I²t.

Rated Voltage (400V vs 800V Systems)

• 400V systems: widely used in standard EV platforms
• 800V systems: require higher voltage-rated fuses with stronger arc control

The fuse voltage rating must always exceed system voltage.

Rated Current

• Based on continuous operating current
• Typically selected with 1.25×–1.5× safety margin
• Must account for peak acceleration current

Breaking Capacity

EV battery systems can produce very high fault currents.

Typical requirement:

• 20kA – 50kA DC breaking capacity

The fuse must safely interrupt fault current without arc failure.

Clearing I²t (Critical for Battery Protection)

I²t defines the energy let-through during a fault.

In EV systems:

• Lower I²t → better protection for battery cells
• Reduces risk of thermal runaway
• Limits busbar and connector damage

Response Time (Critical for Inverter Protection)

Traction inverters use IGBTs or MOSFETs that are highly sensitive.

EV fuses must:

• Respond extremely fast
• Limit fault energy before semiconductor damage occurs

This is why aR-type fuses are widely used in EV inverter circuits.

Although both are DC fuses, EV and ESS applications differ significantly:

EV fuses prioritize speed and compact design, while ESS fuses focus on high capacity and system coordination.

A practical selection process:

1. Identify platform voltage (400V or 800V)
2. Determine continuous and peak current
3. Calculate short-circuit current
4. Select voltage rating ≥ system voltage
5. Verify breaking capacity
6. Check I²t against battery tolerance
7. Ensure fast response for inverter protection
8. Confirm compliance with standards

Key standards include:

• ISO 8820-3
• IEC 60269-4
• UL 248-19

These standards define performance, testing, and safety requirements for EV fuse applications.

• Using general-purpose DC fuses instead of EV-specific designs
• Ignoring inverter protection requirements
• Selecting too high I²t values
• Underestimating fault current levels
• Not considering temperature rise inside battery packs

• Adoption of 800V platforms
• Lower I²t designs for battery safety
• Compact high-performance fuse structures
• Integration with battery management systems (BMS)

EV fuse selection is not just about voltage and current—it requires understanding the interaction between battery systems, inverters, and DC fault behavior.

Compared to general DC fuse applications, EV systems demand:

• Faster response
• Lower I²t
• Compact design
• Reliable high-voltage performance

Proper fuse selection is essential to ensure safety, reliability, and long-term performance of electric vehicles.

What is the difference between EV fuse and DC fuse?
EV fuses are specialized DC fuses designed for dynamic vehicle systems and fast semiconductor protection.

What fuse is used in EV battery packs?
High-voltage DC fuses with low I²t and high breaking capacity are typically used.

Why are EV fuses faster than normal fuses?
They must protect sensitive inverter components such as IGBTs and MOSFETs.

What is the typical voltage of EV fuses?
Most EV systems operate at 400V or 800V, with some reaching 1000V.
